Leblond Makino 15 x 54 Lathe L1 Tapered Nose Spindle spindle

$8000

Leblond Makino 15 x 54 Lathe L1 Tapered Nose Spindle spindle Image

For Sale

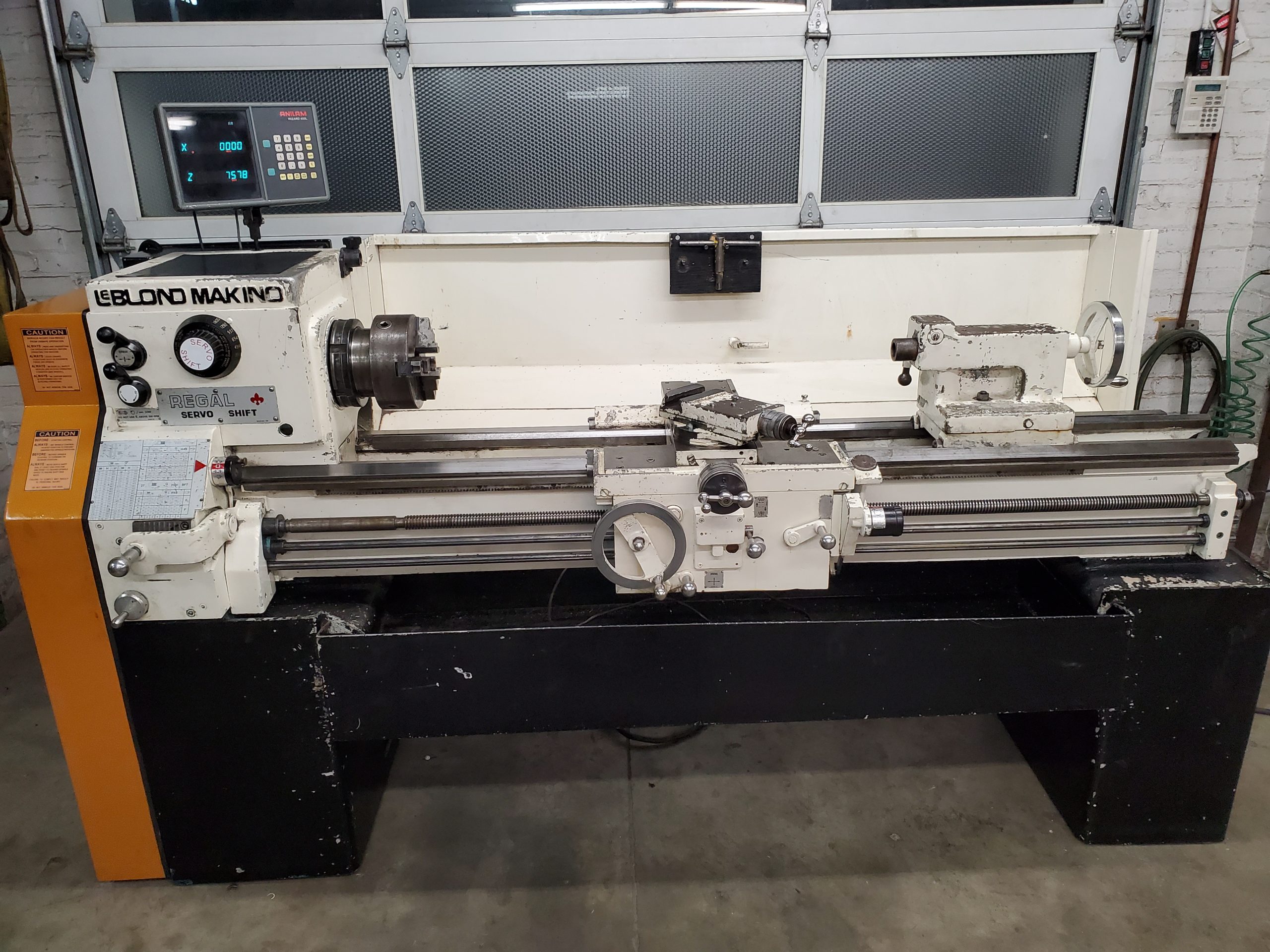

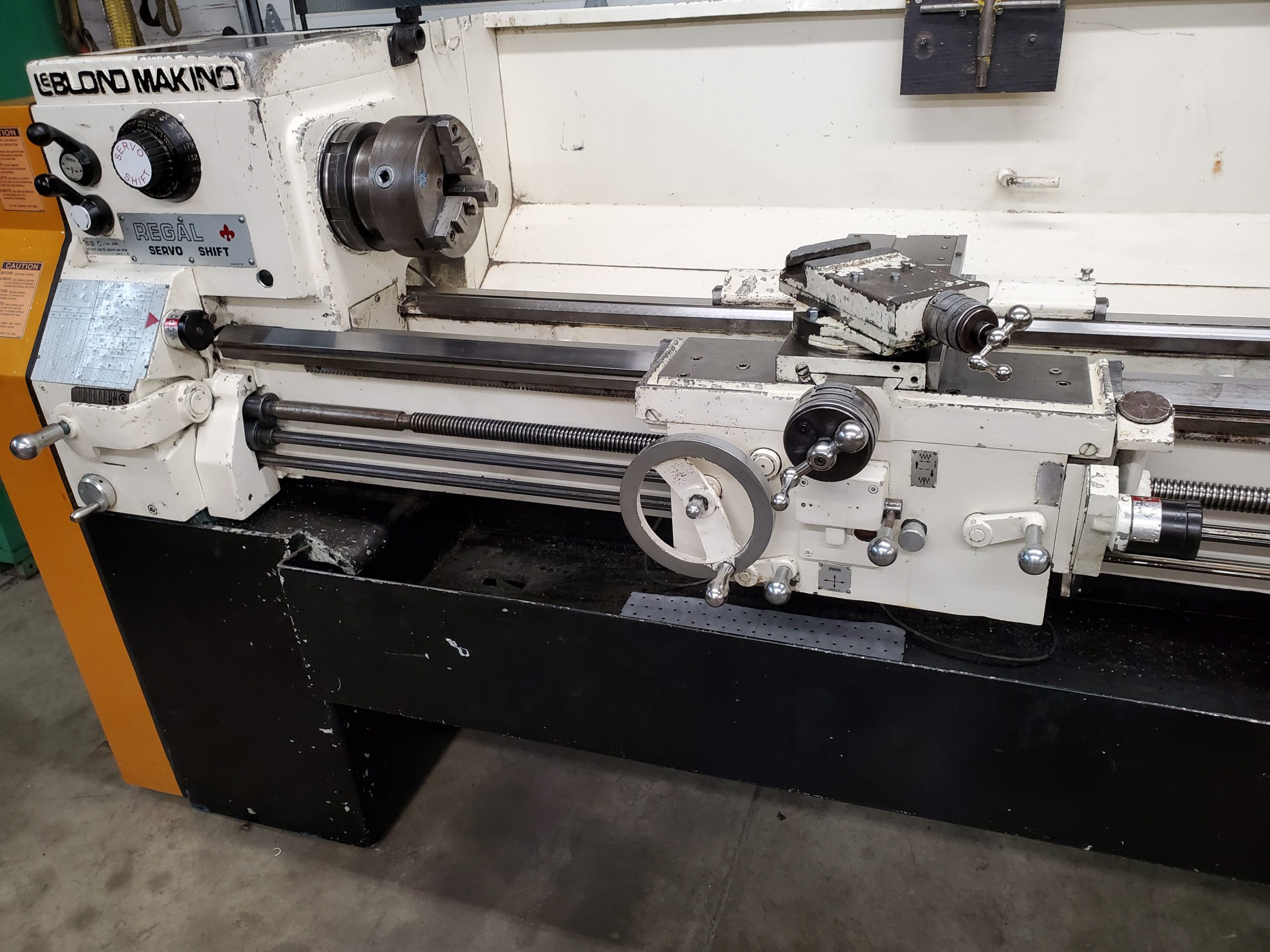

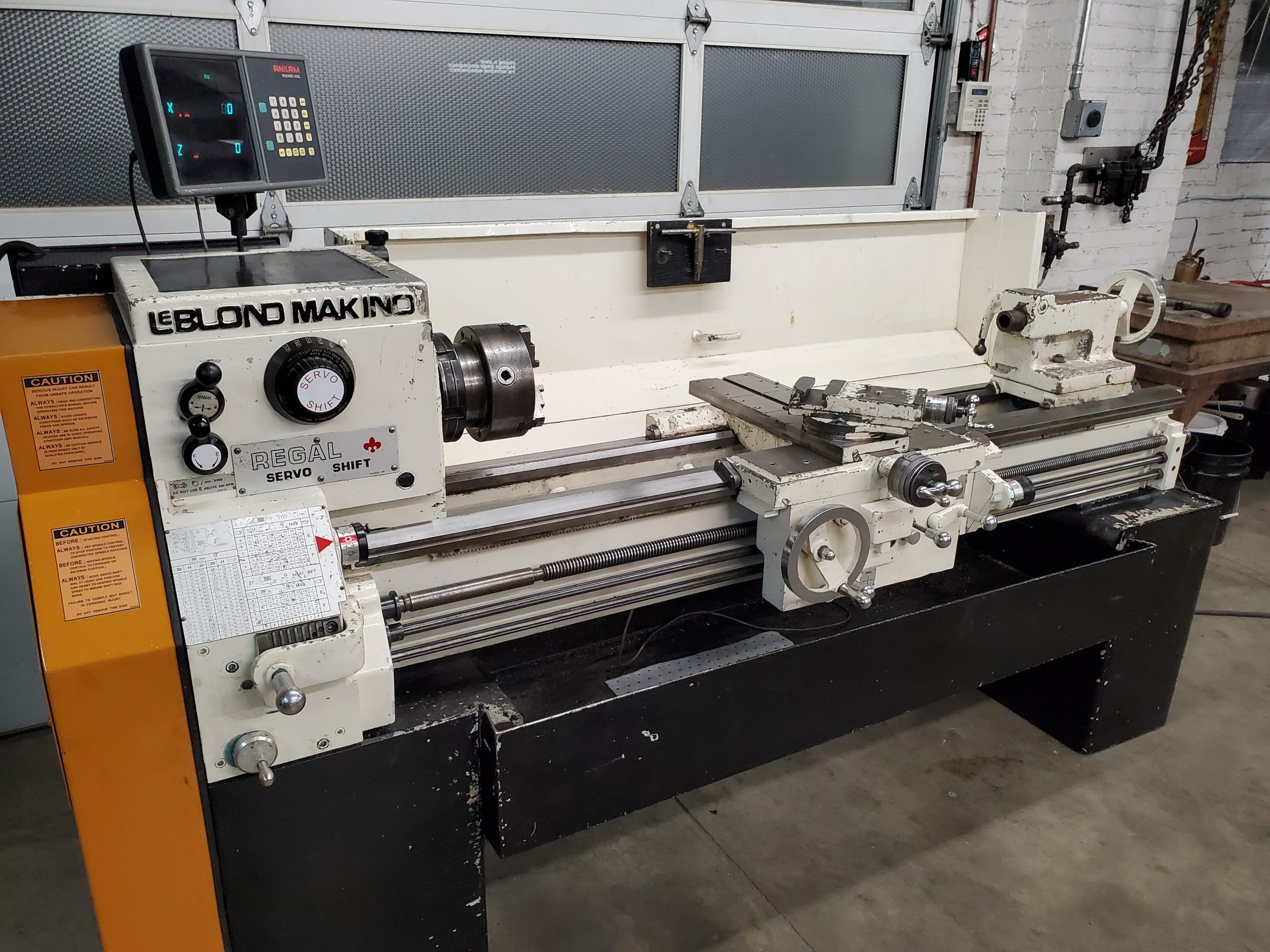

LeBlond 15” x 54” Makino Regal Lathe, 2 17/64” Spindle Bore

Youtube Demo Video ( copy and paste to view) https://youtu.be/Cc7f_7G2exQ

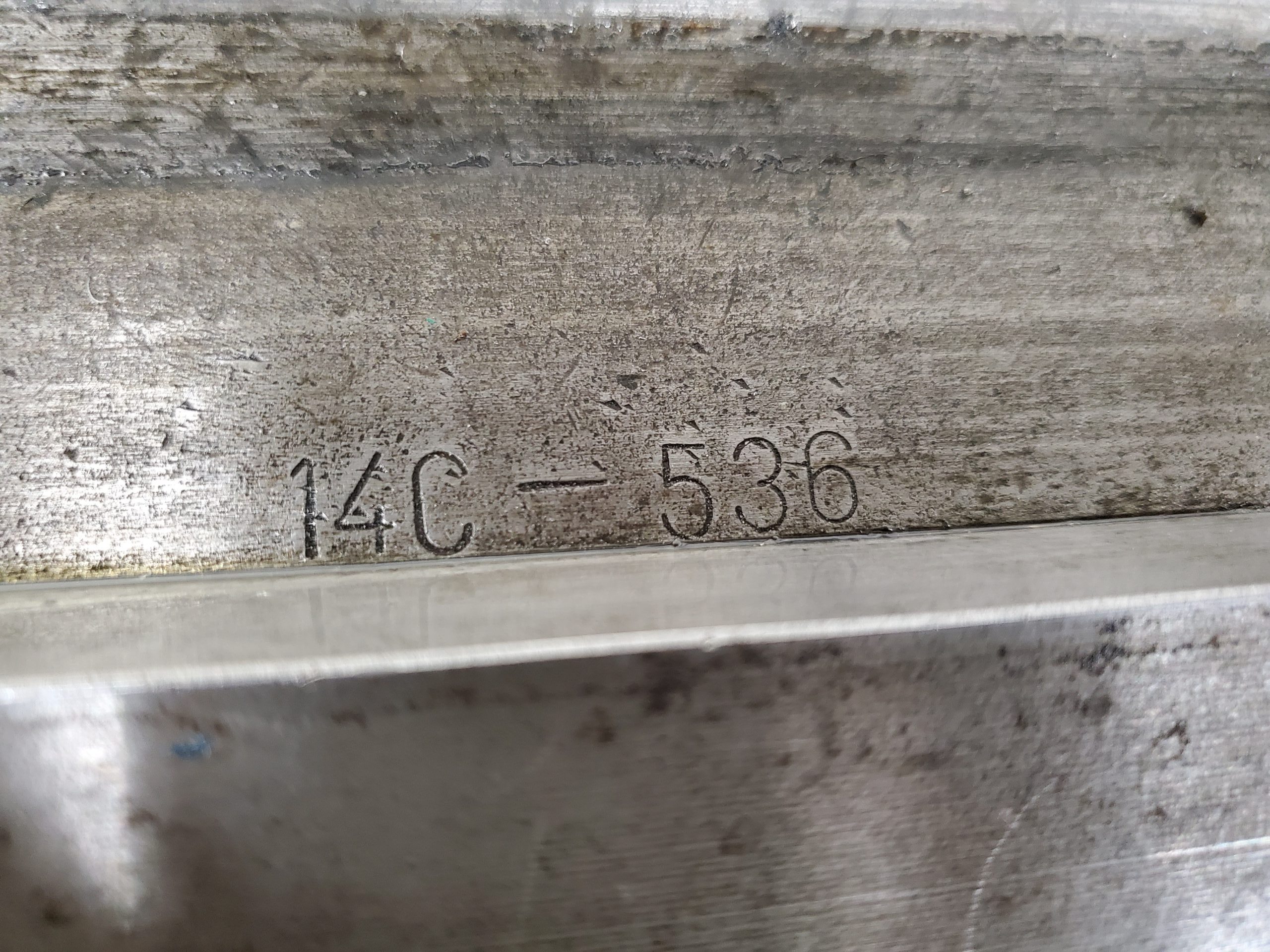

Serial # 14C-536

Lathe has just been serviced , including.
Oil drained , flushed and filled with new oil.

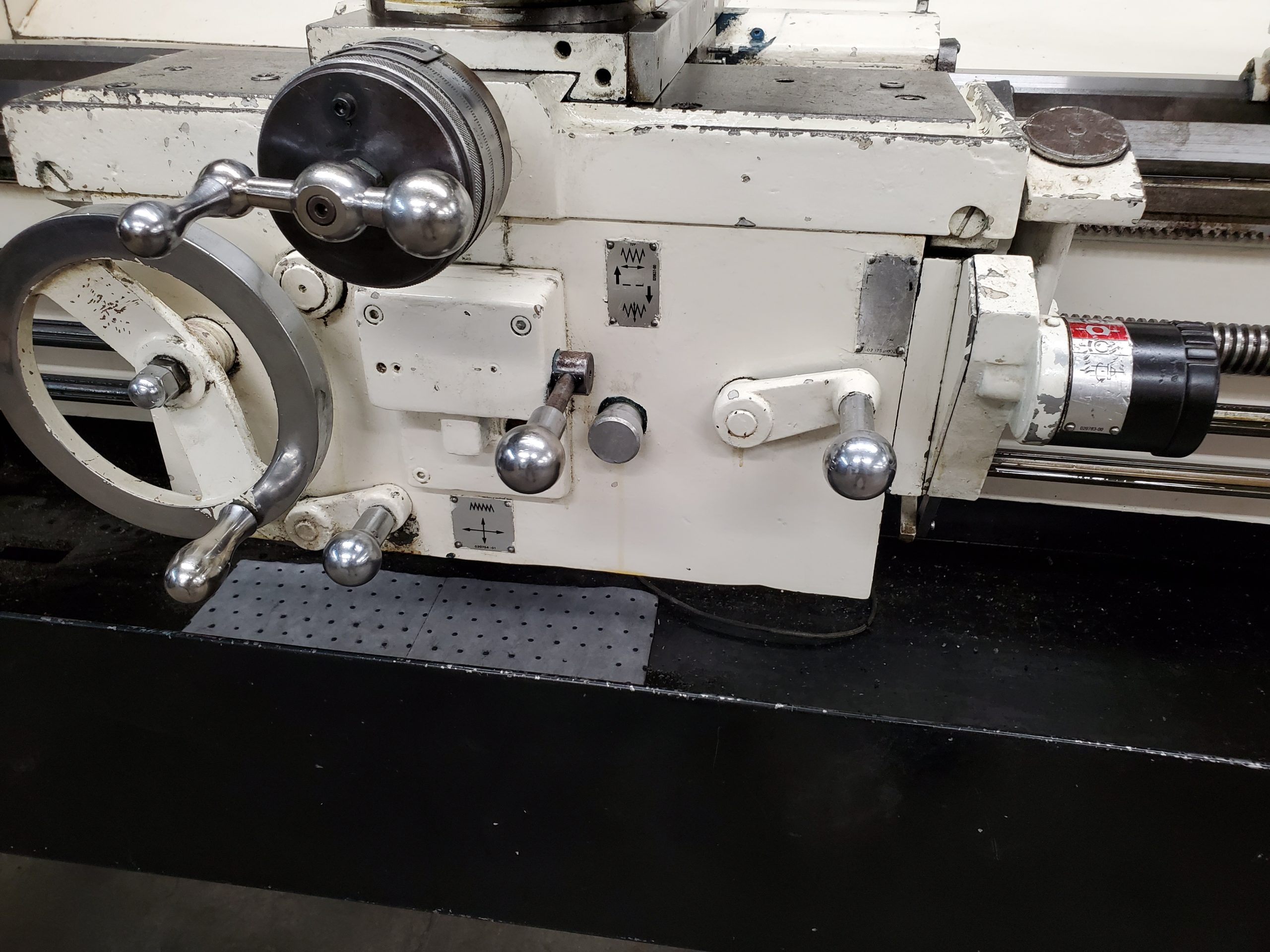

Cross slide and Carriage disassembled clean , verified all gallies are oiling. Gibbs adjusted.
New High speed timing belt from Leblonde (steel belted)

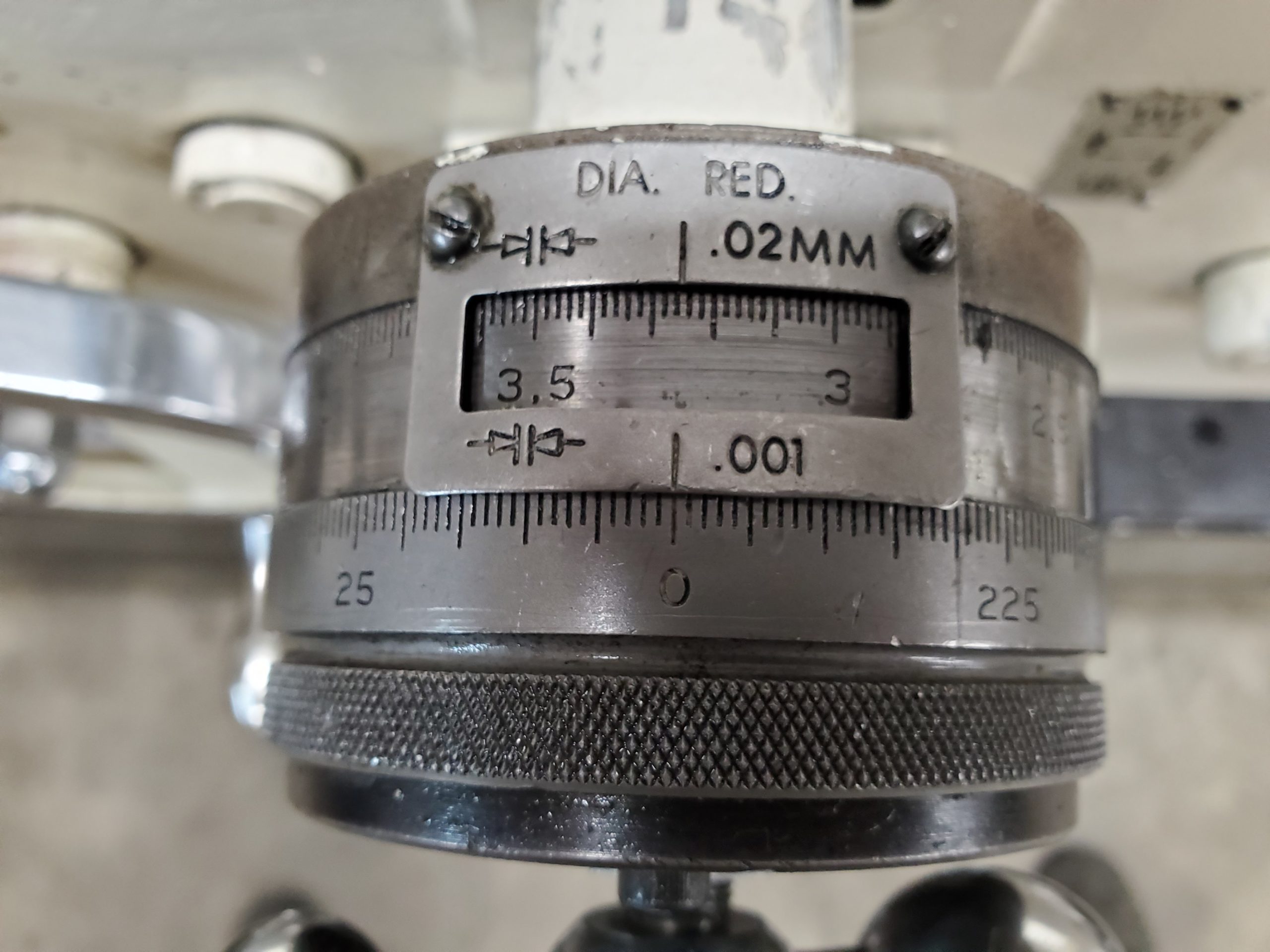

Crossfeed and compound screws have .006-.008″ backlash

Specifications:

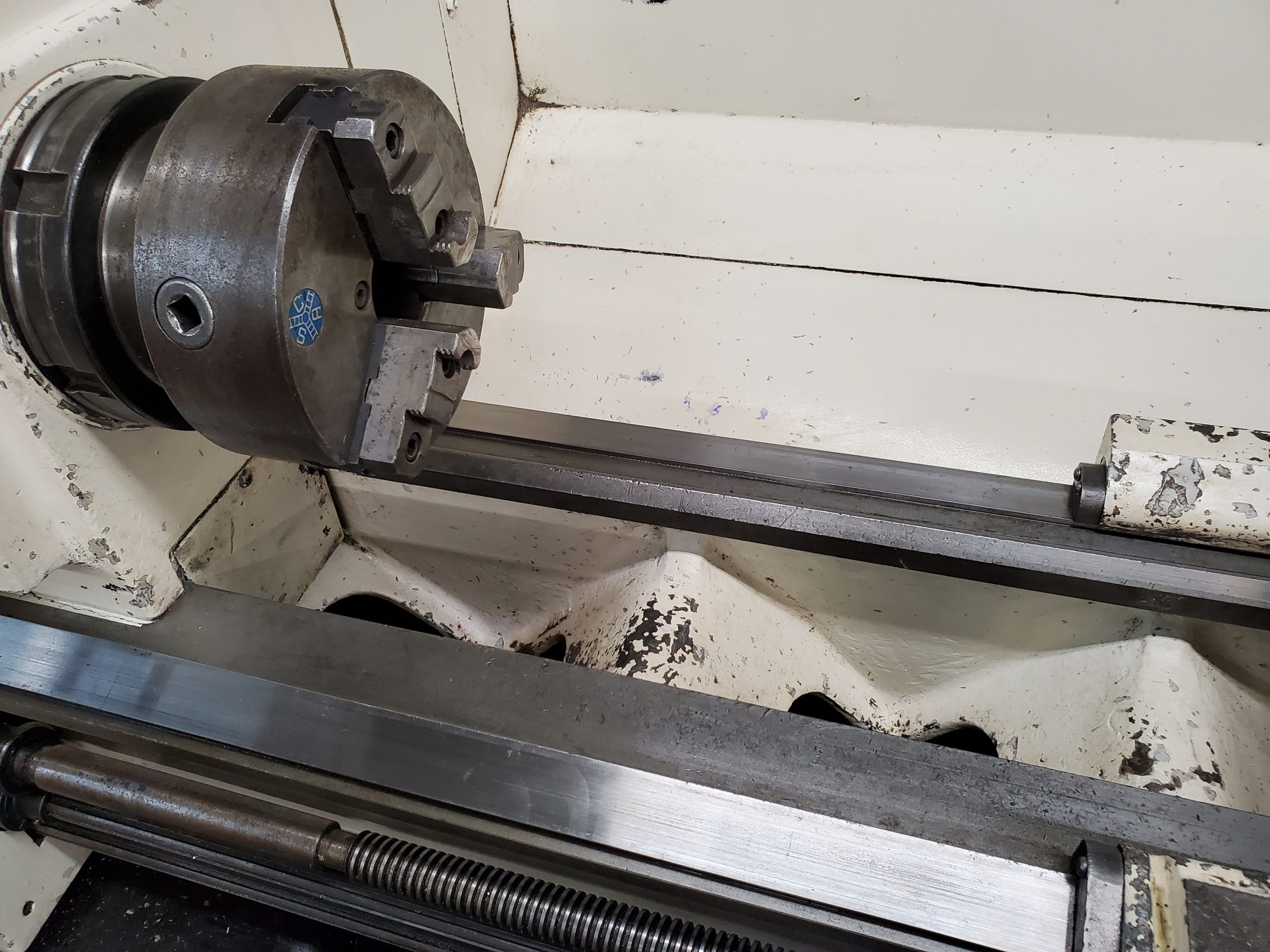

8″ 3Jaw chuck made in Sweden.
4 Jaw Cushman Chuck

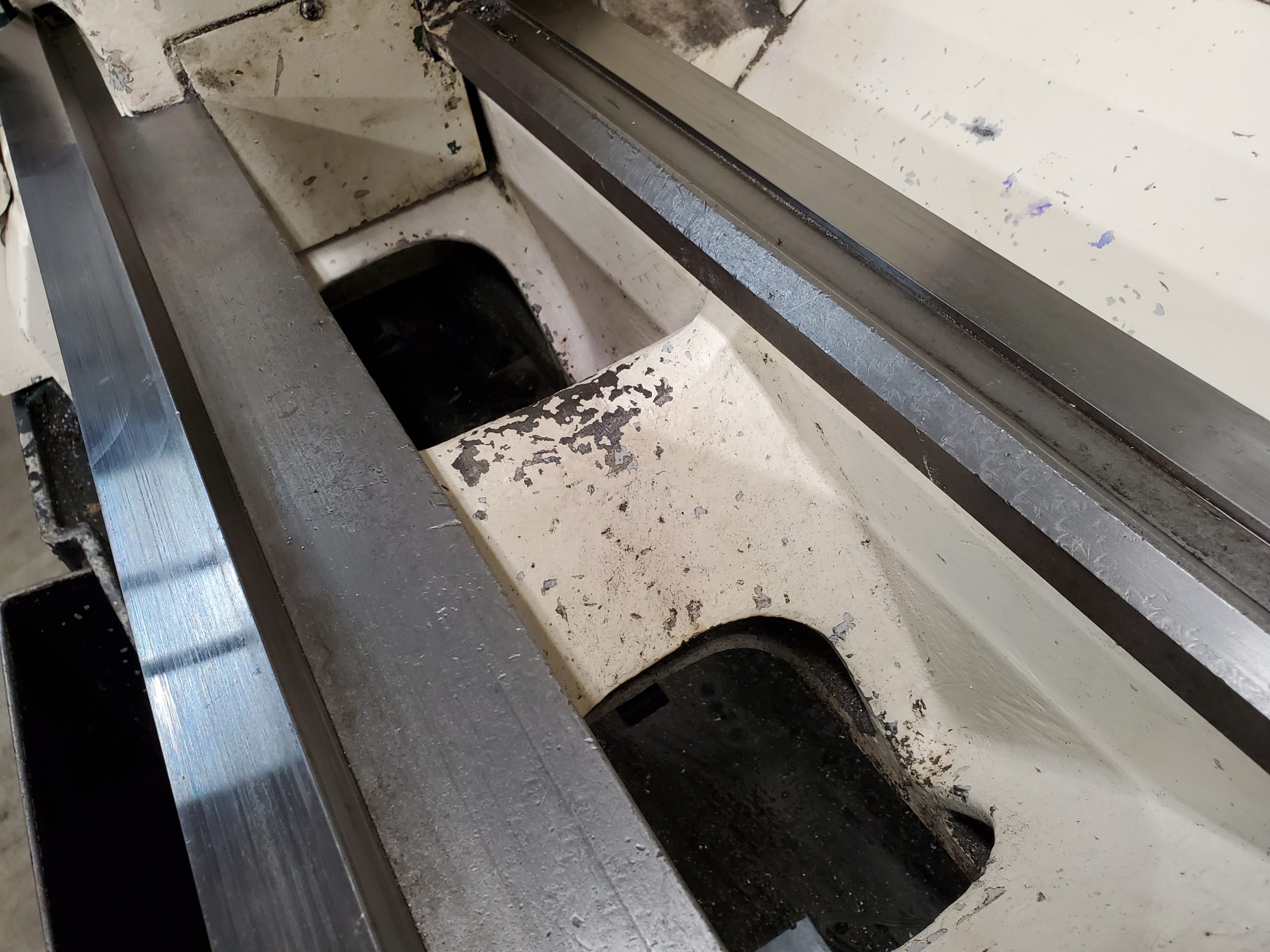

Swing over Bed and Carriage Ways 15 ½”
Swing over Cross Slide 9 ½”
Distance between Centers 54”
Spindle Speeds (12) 45-1800 RPM
Spindle Bore Size 2 17/64”
Spindle Taper L-1
Headstock Length on Bed 15 7/8”
Bed width 12 3/16”
Carriage Length on Bed 19 7/8”
Cross Slide Travel 8 7/8”
Compound Rest Travel 3 7/8”
Feeds (48) 0.0018 – 0.104 IPR
Threads (48) 2-112 TPI
Leadscrew Diameter 1 3/16”
Tailstock Spindle Diameter 1 15/16”
Tailstock Taper M 4
Tailstock Length on Bed 10 ¾”

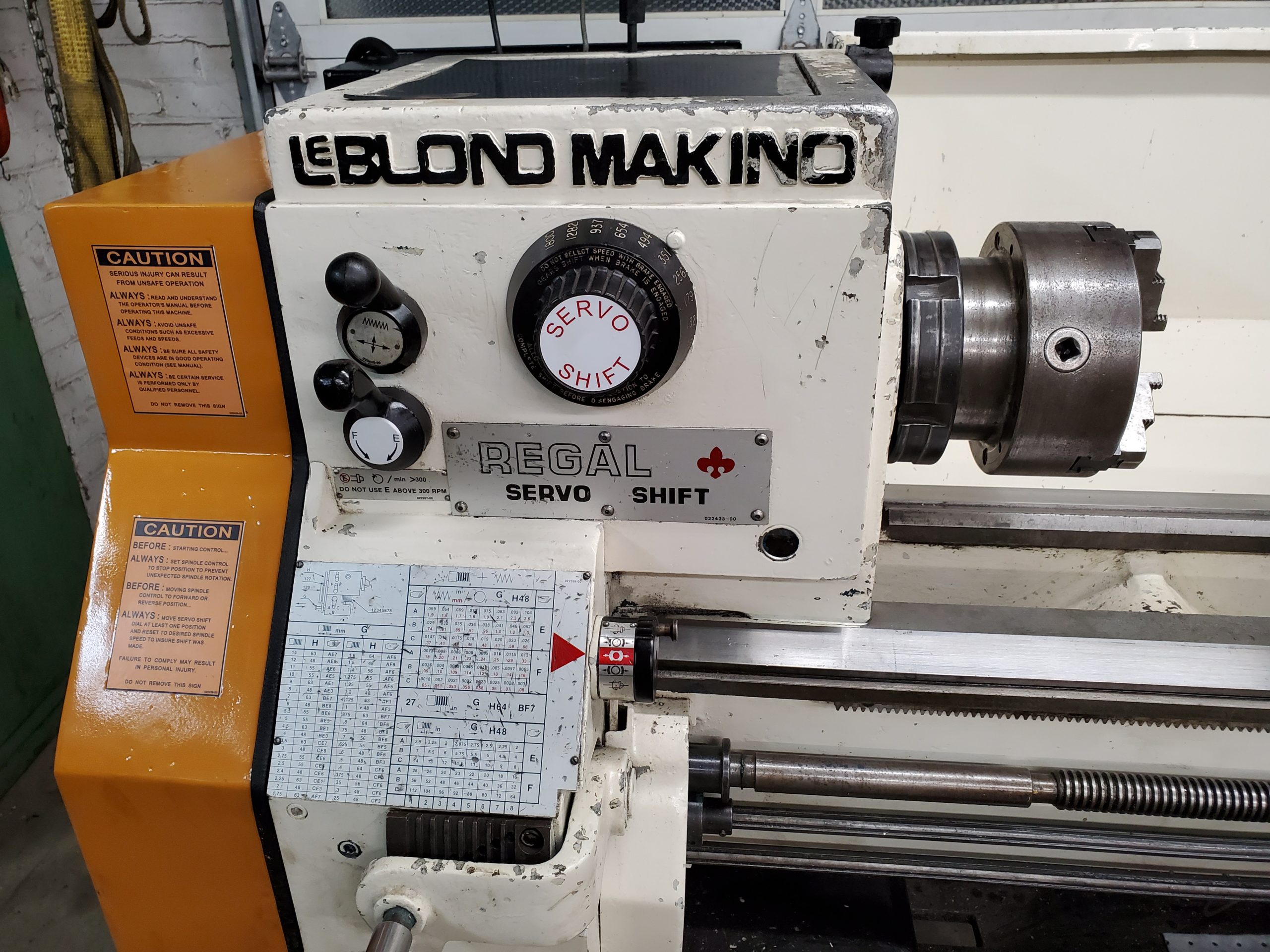

Motor 7.5 HP/ 45- 1800 RPM Servo shift
Dimensions 78” x 40”
Weight 3800 lbs.

Lathe is equipped with Sae and Metric Threading

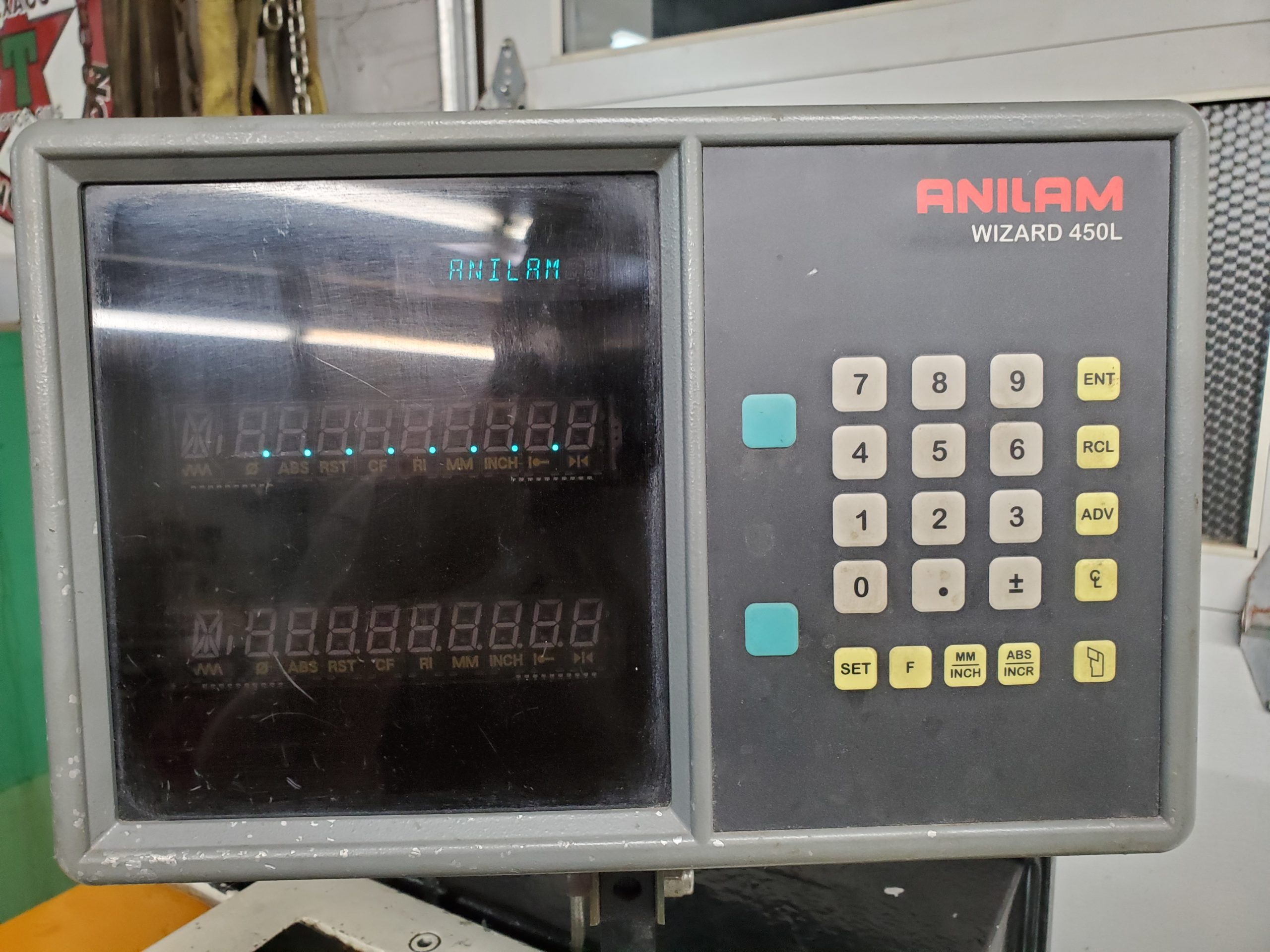

Anilam Dro Z axis only.
Currently wired 208-240 volt 3 phase.

Lathe is powered and can be tested.
Will load on truck or trailer at no charge.
